SI350 Fast Curing Waterproof Silicone Gel Cable Junction Box Potting Sealant
SI350 High Quality Fast Curing Waterproof Silicone Gel Cable Junction Box Potting Sealant
Product description

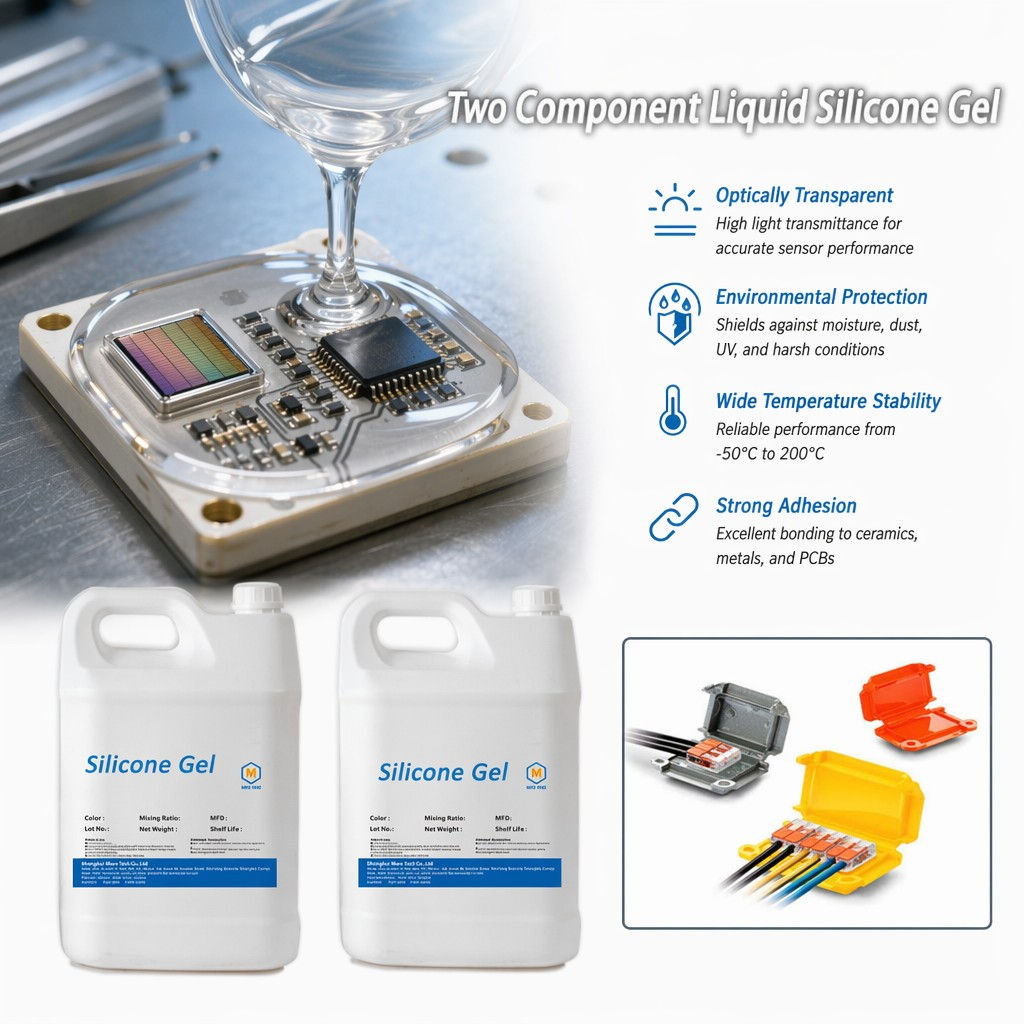

GEL350 is a transparent two-component robust dielectric gel that cures to form a soft cushioned flexible material. It is designed to insulate circuit boards from moisture and other harmful contaminants, and to provide insulation against high voltages. Another use is to provide stress relief to protect circuits and interconnectors from high temperature and mechanical stress.
l 1:1 addition molding for easy operation
l Excellent flexibility, eliminate mechanical stress
l Very low oil permeability after curing, excellent resistance to toxicity
l High temperature electrical insulation is excellent, to provide protection against high pressure
l Excellent aging resistance and weather resistance
l Excellent waterproof, anticorrosive, moisture-proof, chemical medium resistance
l It is suitable for cable connection box, waterproof junction box and underwater instrument
l Widely used in power electronics, ignition module potting
Typical performance
Composition | PART A | PART B |
Ingredients | Polysiloxanes | Hydrogen-containing |
Appearance | Colorless clear liquid | Colorless clear liquid |
Viscosity, mPa ·s(25℃) | 500 | 500 |
Specific gravity, g/cm3(25℃) | 0.99 | 0.99 |
Mix ratio mass ratio | A: B = 100:100 | |
Viscosity after mixing, mPa ·s(25℃) | 500 | |
Operating time after mixing, min(25℃) | 7±3 mins | |
Curing condition, ℃/hr | 25℃/ 30mins or 80℃/ 10mins | |
Post-cure characteristics
Appearance of hardened material | Colorless clear gel |
Hardness, Shore 00 | 30±10 |
Dielectric strength, KV/mm | ≥20 |
Volume resistance (DC500V), Ω·cm | 1.1 × 1013 |
Loss factor (1 MHz) | < 0.001 |
Dielectric constant (1 MHz) | < 3.00 |
Use temperature range,℃ | - 60 ∞ 260 |
PS: Operation time is tested with the amount of glue dispensed 100g.
Curing state All data were determined at 25℃ , 55%RH after 7 days of adhesive curing.
Operation and use process
l The A and B components are weighed at a ratio of 1:1, mixed evenly, and injected directly into the components (or modules) that need to be potting and protected. It is best to slowly inject along one side of the wall, which can reduce the generation of bubbles.
l The potting element is left to stand and let it bubble itself. After the bubble basically
Precautions
l Vacuum defoaming of AB components after mixing can improve the performance of hardened products
l A and B components should be sealed and stored after use
disappears, it can be heated and cured (under the condition of 80℃, about 10 minutes). It can also be cured directly at room temperature, about 30mins.
l Please consult the Marketing Department of our company for the potting equipment that needs quantitative gluing.
l Too low temperature will lead to slow curing speed, it is recommended to heat curing
l MDGEL 350will be difficult to harden in contact with materials containing sulfur, amines, rosin, organometre-metal salts, and tin
Packaging Specifications
GEL 350silicone gel, order code: A: 2KSI5200; B: 2KSI5201
l Component A: 5L plastic pot
l Component B: 5L plastic pot
l Other packaging can also be customized
Storage and Transportation
l Be kept away from light and heat and sealed (can be transported and stored as non-dangerous goods);
l Storage period 1 year (25℃).
