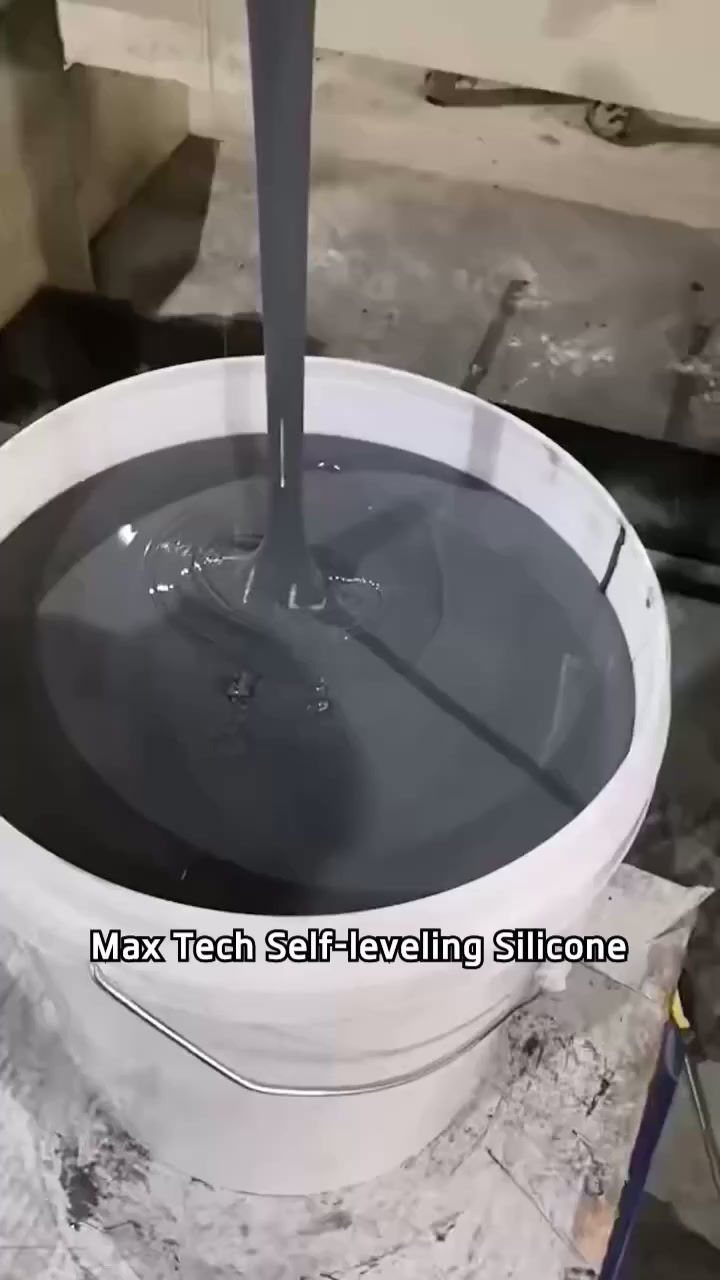

self-leveling silicone sealant
One component Self leveling Silicone Joints Sealant SL-003
Self-leveling silicone sealant is a flowable, 1-part RTV (room temperature vulcanizing) adhesive designed to fill horizontal cracks, joints, and gaps without needing tooling. It creates a durable, flexible, and weatherproof seal for concrete, industrial, and electrical applications, remaining functional from -60°C to +260°C.
∎Technical Data Table
PROPERTY | STANDARD/UNITS | VALUE |
Color/state | Visual inspection | Grey/ Black/White Uniform Sticky Liquid |
Density | (g/cm³) | 1.3 |
Tack Free Time | Hr | ≤3 |
Extrudability | (ml/min) | ≥80 |
Resilience Rate | % | ≥80 |
Flow ability | mm | Self-leveling |
Elongation at Break | % | ≥850 |
Elongation -20°C | % | 450 |
Solid Content | % | 99.5 |
Operation Temperature | °C | 0~35 |
Service Temperature | °C | -60~+200 ℃ |
Adhesion | t0, C | >+60 |
Load frequency | cycle | >50000 |
Shelf life | months | 12 |
Warranty Life | Years | 3~5Years |
Note：All data above were tested under special condition (7 days after full cured).
∎Product Description
SL-003 is High quality one component Silicone Sealant with excellent elastic joint material.
∎Key Features
1.Has good UV resistance, fuel resistance, heat and humidity resistance, water resistance and low temperature resistance.
2. Strong tear resistance, good adhesion to steel, aluminum and other metals, various concrete, buildings, etc.
3. Suitable for areas where seam activity is hit, especially airport runways, to tell the road's expansion joints.
4. Good technicality, not easy, non-toxic, safe and reliable to use, easy to operate.
5.It has excellent air tightness and water tightness, good low temperature flexibility, and can be cured at room temperature or humidified.
∎Typical Applications
1. Sealing of the overall mailbox of the aircraft; high-speed ships, water-proof for you, leak-proof for all kinds of ships; caulking of decks, glass sealing of windows on ships, etc.
2. Modern wall joints in the field of construction engineering; waterproofing of joints in high-rise buildings; glass doors and windows of building construction with embedded seals.
3. It is especially suitable for concrete filling gaps of various types of concrete such as airport runways, platforms, highways, large-scale wharfs, bridges, dams, swimming pools, aircraft hangars, underground road tunnels and other concrete. Such as caulking projects with large temperature differences in the cold environment.
4. The products can be divided into single and double components. Colors can be divided into black, gray and white.
∎Chemical Resistance
●SL-003 is excellent resistant to fresh water, saltwater, sewage water and acids.
●Temporarily resistant to fuels, mineral oils, vegetable and animal fats and oils.
●Not resistant to organic acids and caustic solutions or solvents.
●The above information is offered for general guidance only. For more professional questions, please consult MAXTECH service.
.
∎Packing Specification
●Sausage 600ml
●Pail/Drum 25kg/drum, 230kg/drum
20pcs per box
30kg pail, 36 pails per pallet
∎Transport &Storage
● Transport: Keep the sealed product away from moisture, the sun, high temperature and avoid collisions.
● Storage: Keep the sealed product into cool, dry place.
● Storage temperature: 5~25℃.
●Cartridge and Sausage :12 month. Pail/Drum:12month.
Please don't order directly, if you have any doubts, welcome to talk more with us.+8618321208486
EP 3209A/B Two Component Black Epoxy Structural Adhesive
Product description
EP 3209A/B Epoxy adhesive is a room temperature/heat curing resin adhesive. This two-component bonding adhesive is designed for metal bonding, bonding of cube or SMC fiberglass parts, aluminum honeycomb plate splicing and magnetic steel tile bonding of motor products, ceramic film component sealing, internal structure bonding of lithium battery module, soft magnetic unit potting, high temperature sensor potting, etc.
EP 3209A/B epoxy adhesive can cure in both room temperature and heating environment. After thoroughly mixing component A and component B at 100:50 (weight ratio), the product cures within a certain period of time to form protection.
The cured glue has the following properties:
Resistance to moisture, dirt, and other atmospheric components
High strength, excellent adhesion
Good pollution resistance, low surface pretreatment requirements
No solvent, no curing byproducts
Excellent high and low temperature resistance, -50℃-180℃
Transformer oil resistance, low attenuation
It has good adhesion to glass fiber cloth, aluminum and plastic, aluminum and aluminum and steel plate
Technical parameters before and after curing:
Test items Test standard Unit Part A Part B
Appearance Visual --- Black paste Beige paste
Viscosity GB/T 2794-2022 25 ° C, mPa·s 350,000±10,000 30,000±70,000
Density GB/T 13354-1992 25 ° C, g/cm3 1.12±0.05 1.03±0.05
Mixing ratio Mass ratio Ratio=A:B 100:50
Mixing ratio Volume ratio Ratio=A:B 100:50
Mixing viscosity GB/T 2794-2022 25 ° C, Pa·s 150,000±30,000
Operating time GB/T 2794-2022 25 ° C, 100g, min 70±10
Hardness GB/T 531.1-2008 Shore D 85±5
Peel strength GB/T 528-2009 Kgf/cm2, Fe/Fe 240
Kgf/cm2, AI/AI 226
T-peel strength GB/T 2791-1995 N/mm(25℃) 6
Shear strength GB/T 7124-2008 mPa·s ≥20
Impact strength GB/T 1843-2008 KJ/m2 15
Glass transition temperature GB/T 22567-2008 ℃ 110
Coefficient of thermal expansion GB/T 1036-2008 U m/m / ℃ <Tg, 45
>Tg, 152
Thermal cracking temperature TGA 10℃/min ℃ 290
Water absorption GB/T 8810-2005 24h, 25 ° C, % 0.45
Dielectric strength GB/T 1692-2008 kV/mm (25 ° C) 22
Dielectric loss GB/T 1693-2007 (1MHz) (25 ° C) 0.006
Dielectric constant GB/T 1693-2007 (1MHz) (25 ° C) 3.1
Volume resistance GB/T 1692-2008 DC500V,Ω· cm 5.20E +14
EP 3090 transparent epoxy structural adhesive
Order code: A: 2KEP6670; B: 2KEP6671; A+B: 2KEP6672
MDEP 3090 black epoxy structural adhesive
Order code: A: 2KEP6611; B: 2KEP6671; A+B: 2KEP6678
l Component A: 1 kg/barrel; Component B: 1kg/ bottle;
l Component A: 5 kg/barrel; Component B: 5kg/ bottle;
l A+B double tube package, 50ml/ bottle
l A+B double tube package, 400ml/ piece
